Hi
I looked at the diagram
http://xlobby.com/news/wp-content/uploa ... setup1.jpg
and I was wondering if somebody could explain a few things for me.

1:/ Are the clients running full xlobby and not in client mode?
2:/ How are the music zones hooked up to the client machines? I mean how do the clients know what zones they belong to. Or are they connected to a Xlobby server all of them?
3:/ What wires do the amps need for zones to work. I just do not understand how this works but it looks great and I want it -:)

What I am trying to ask is:
How does music sync work for the 12 zones?

Thanks in advance

//Lasse

[wesblack]

This basic setup was from a Job that was done in Cabo San Lucas (Mexico). Each room has its own xLobby mini, 12 mini clients total and and all of them are pulling movies and music from several NAS systems. Each room has a direct control screen to a Zone of 2 X RS232 connected Russound CAV systems for 12 zones. The CAV units are not shown on the diagram. The xLobby Music Sync feature is not necessary since the Russound system can take any source and distribute it thru-out the property.

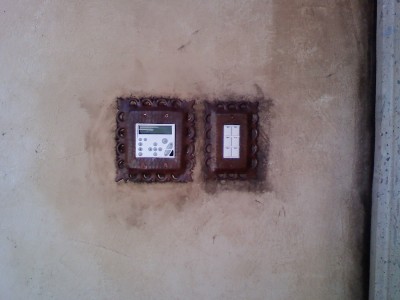

Image of the Russound UNO Keypad and Lutron lighting control keypads on the court yard gameroom wall

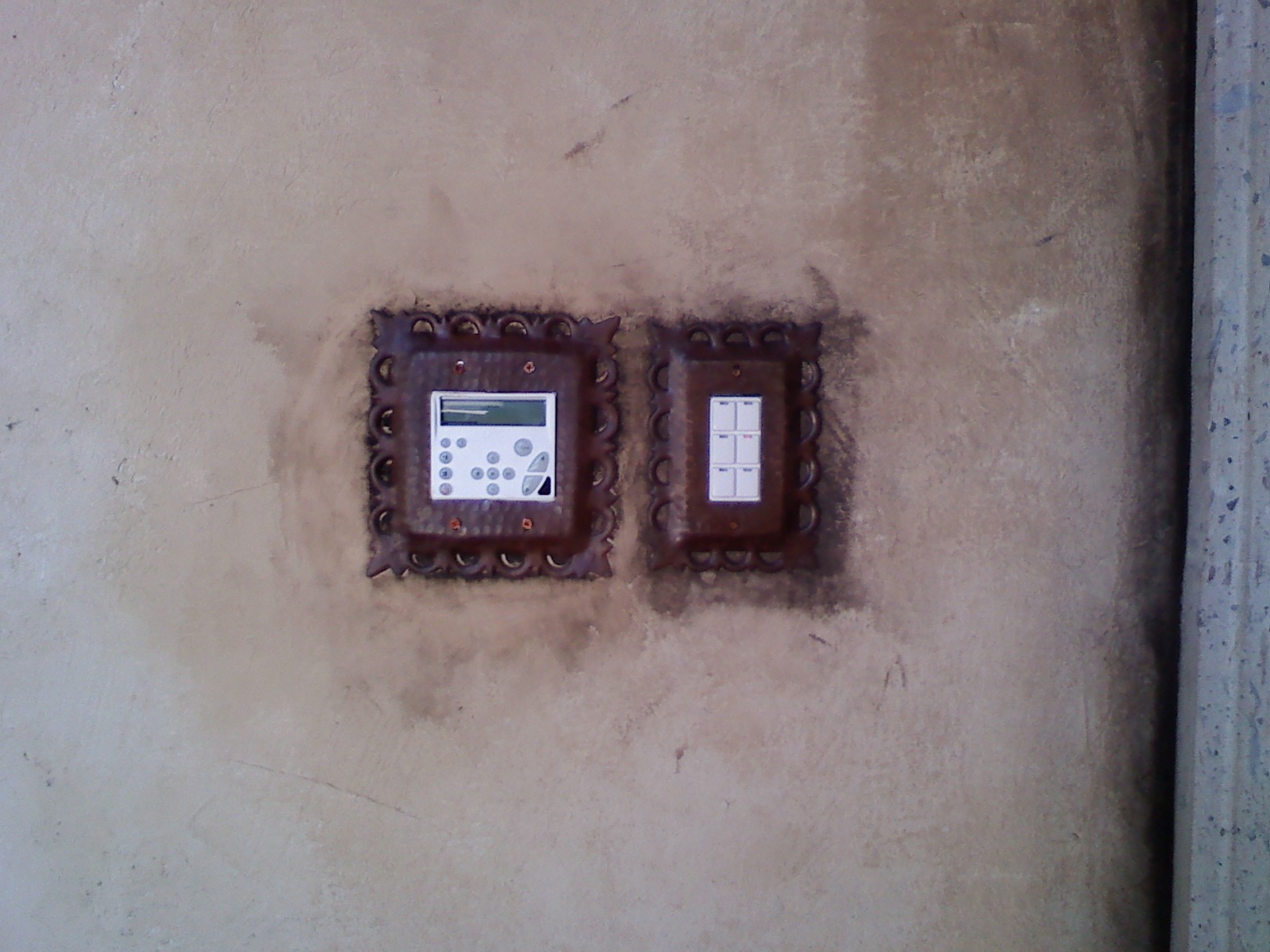

Image of the Russound UNO Keypad and Lutron lighting control keypads on the court yard gameroom wall (Closeup)

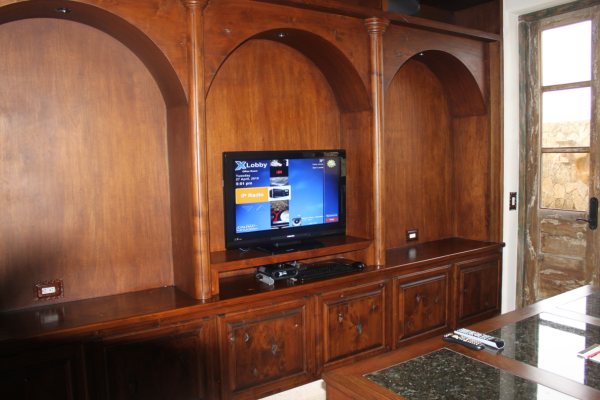

Image of xLobby mini in the unfinished home Office

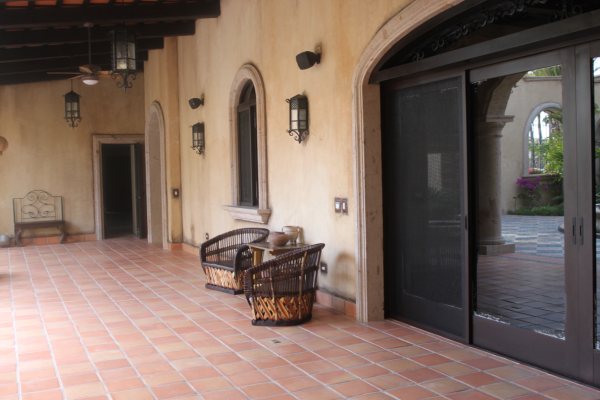

Image of back yard patio by the pool area with distributed xLobby audio using Russound (Speaker above doorway)

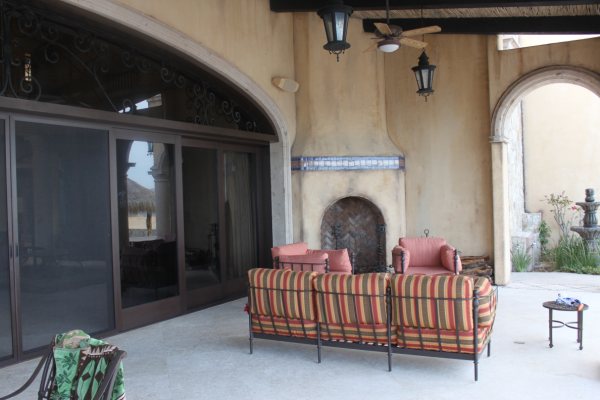

Image of back yard, pool area with distributed xLobby audio using Russound

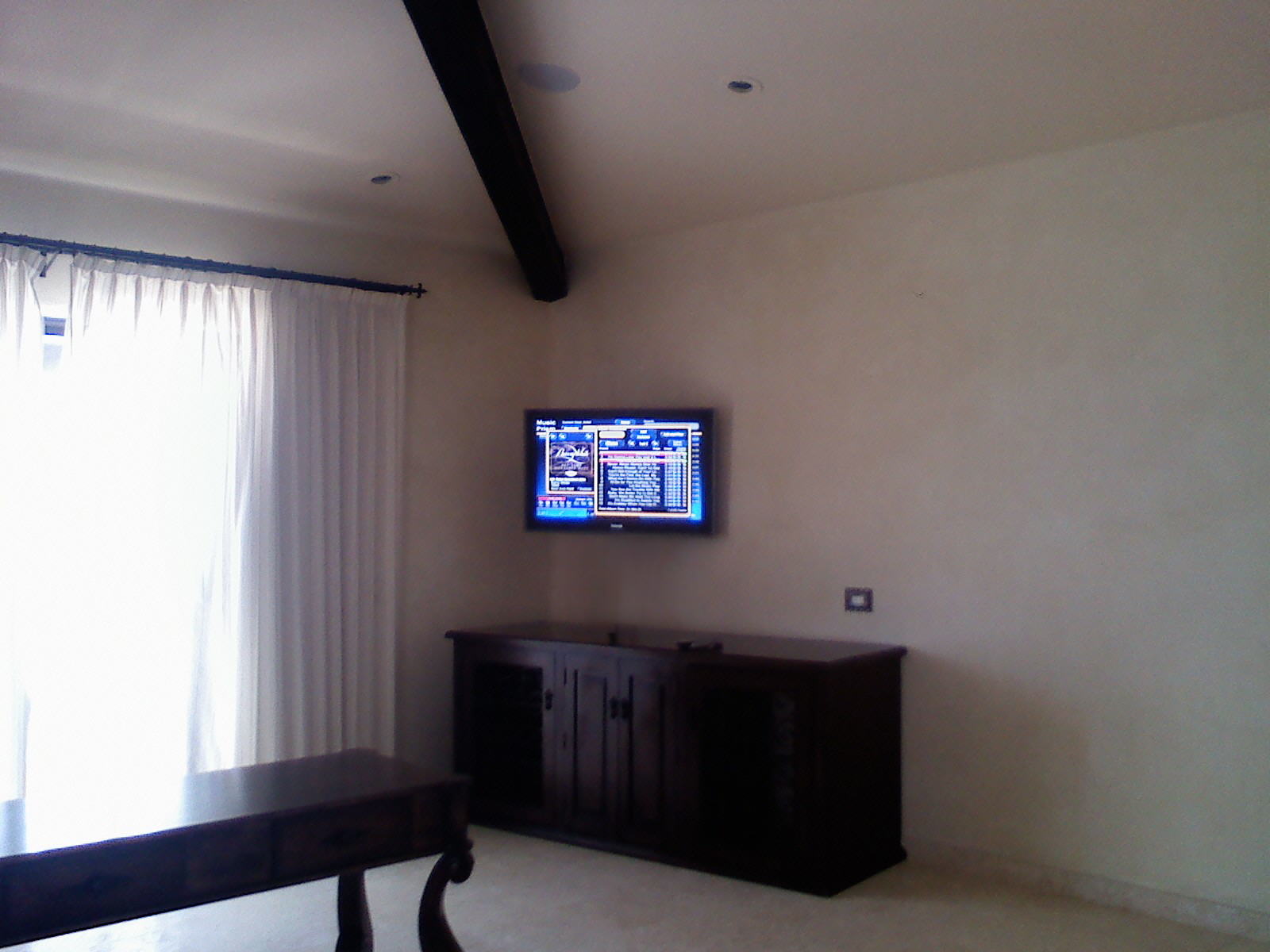

Image of 2nd floor poolside guest bedroom with xLobby Mini displayed on a 46" display with a articulating mount.




Wes Black \ Calrad

[lar282]

Thanks for the great pictures Wes.

So if I understand it right, Xlobby does not have anything to do with playing music in the zones. That's taking care of the russound device. Xlobby is just used to play videos/music in the particularry room?

How much is a device like that cost?

Regards

//Lasse

[wesblack]

More details on Russound integration.

http://xlobby.com/news/2008/04/27/russound-example-page-from-the-new-xlobby-brochure/

Information on Xantech Multizone audio-video integration.

http://xlobby.com/news/2009/11/12/xlobby-and-xantech-integration/




Wes Black \ Calrad
