INSTEON - HVAC set-up

[vaporhat]

Can someone post up a smaple of thier Insteon HVAC set-up?

[vaporhat]

Does anyone use HVAC control? anyone... anyone??

Where do I begin.. someone please just point me in the correct direction...

[smarty]

Wish I could assit, but all my insteon stuff is set up w/ PowerHome, not with Xlobby. Without indepth link management tools, Insteon w/Xlobby could be very cumbersome. I will be watching this thread....hope someone else chimes in.

[wesblack]

I will post some details, screenshots before the end of the week.





Wes Black \ Calrad

[wesblack]

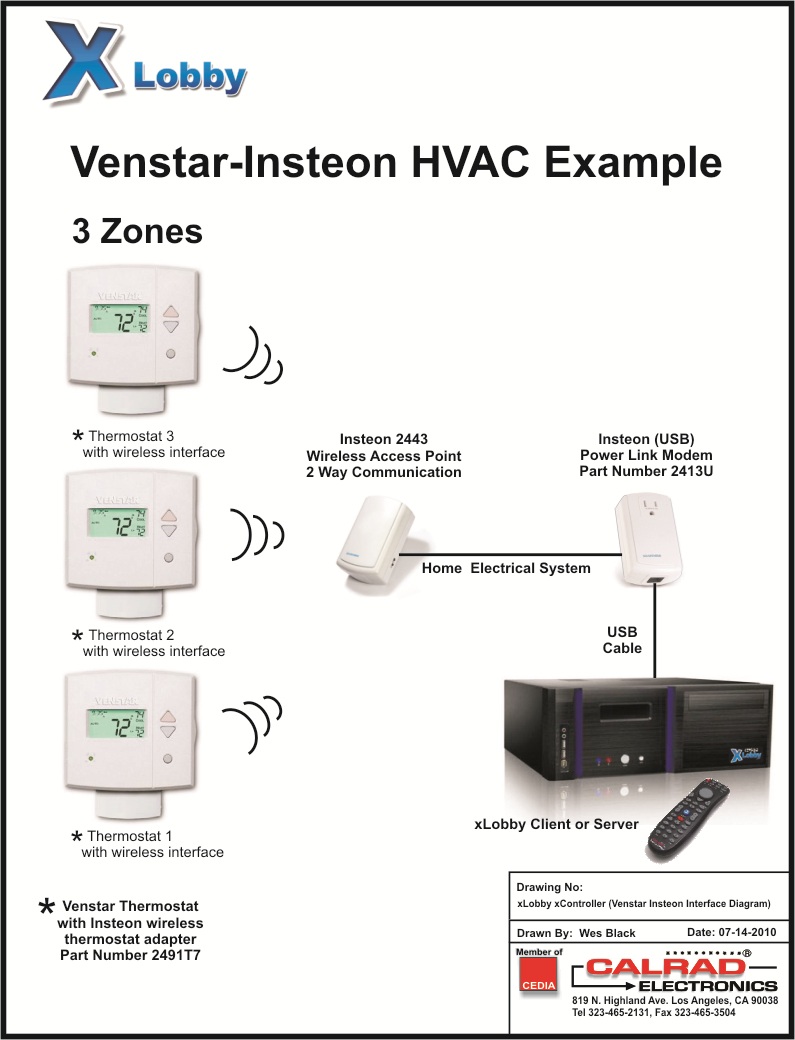

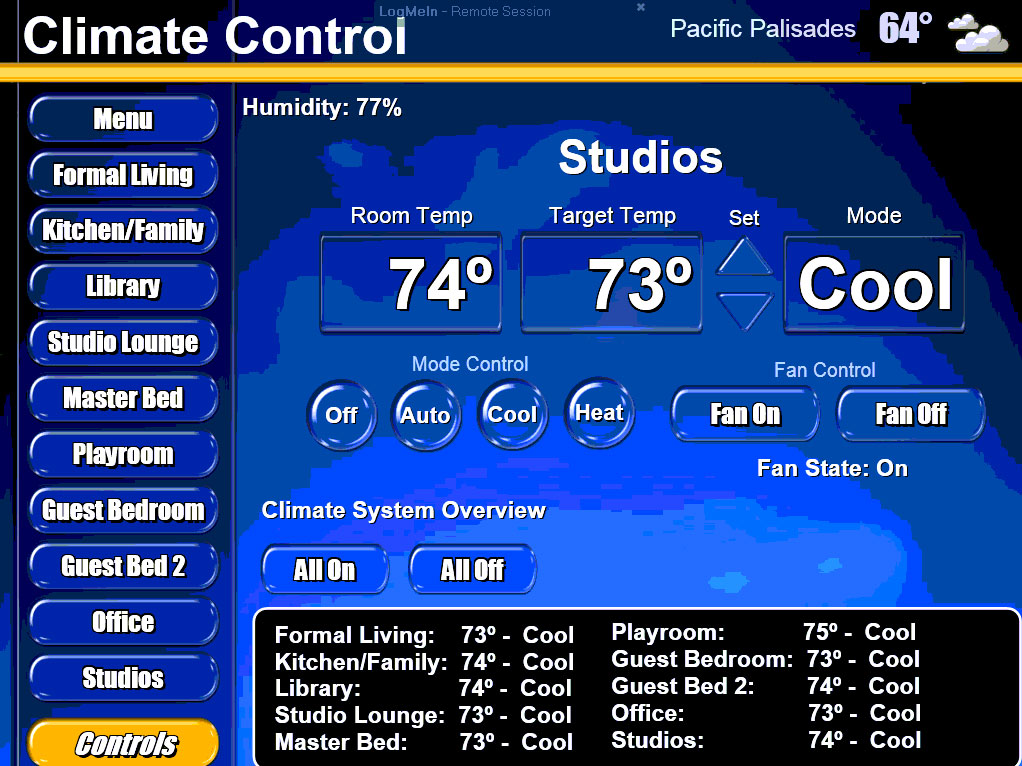

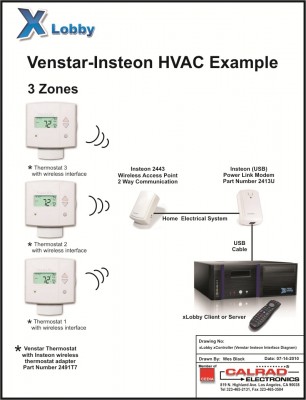

xLobby controlling 10 Separate Zones of HVAC using Insteon Technology

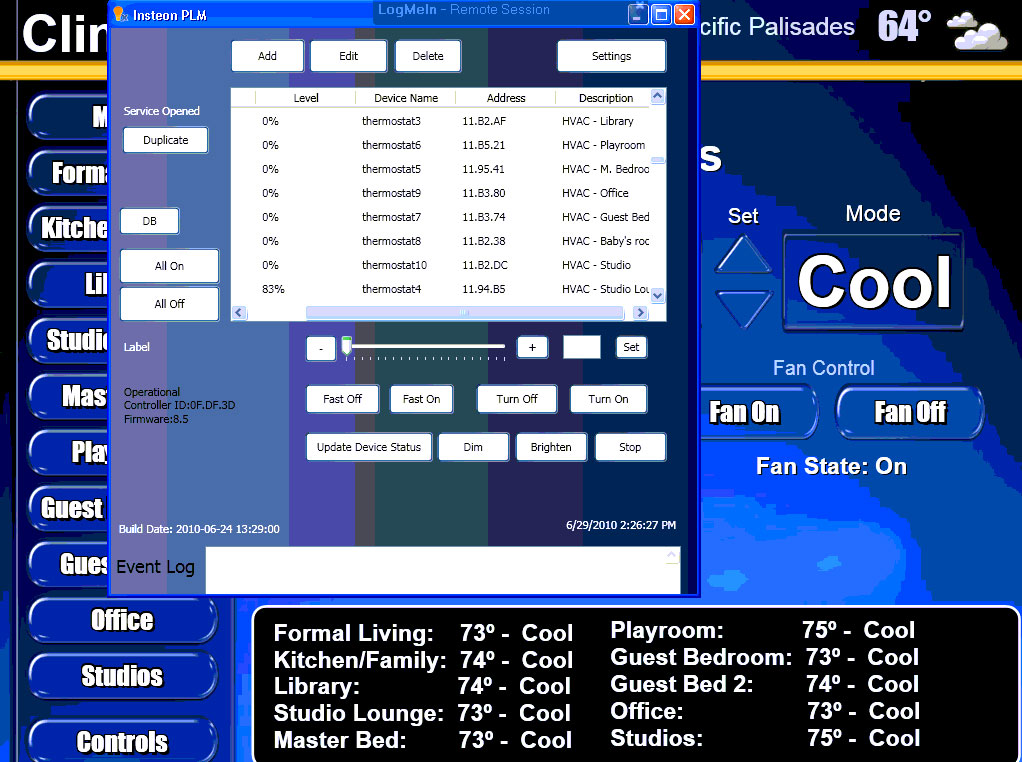

xLobby xController setup using the Insteon Service


The device name "thermostat" must appear first in order for the service to communicate with the Insteon PLM properly.

Hardware:


Insteon 2443 Wireless Access Point


Insteon 2441v Wireless Thermostat Adapter

venstar thermostat.jpg (8.41 KiB) Viewed 5444 times

Venstar 7 day programmable thermostat with Insteon 2441v Wireless Thermostat Adapter attached



• Save energy and money on bills by remotely controlling your thermostat
• Everything you need: Includes Venstar T1800 Thermostat plus INSTEON Thermostat Adapter
• Works with heat/cool and heat pump systems


Product Summary

Turn the temperature up or down from anywhere in the house! INSTEON Thermostat Adapter allows you to adjust your thermostat from any INSTEON-compatible controller.


--------------------------------------------------------------------------------

Specifications

Thermostat

Brand:
Venstar

Dimensions:
4 3/4" x 4 1/4" x 1 1/8"

Control Stages:
2 heat, 1 cool

Compatible Systems:
Heat/cool; heat pump

Approvals:
UL listed, FCC Compliant

Adapter

Brand:
Smarthome

Range:
150' (line of sight)

Frequency:
915 MHz

Status LED:
1 Green LED (normally on)

Setup Memory:
Non-volatile EEPROM









Wes Black \ Calrad
