xLobbys new 16 device universal remote control with built-in wireless mouse, available in the first quarter of 2009. We will have the remote in our booth at the 2009 CES show.

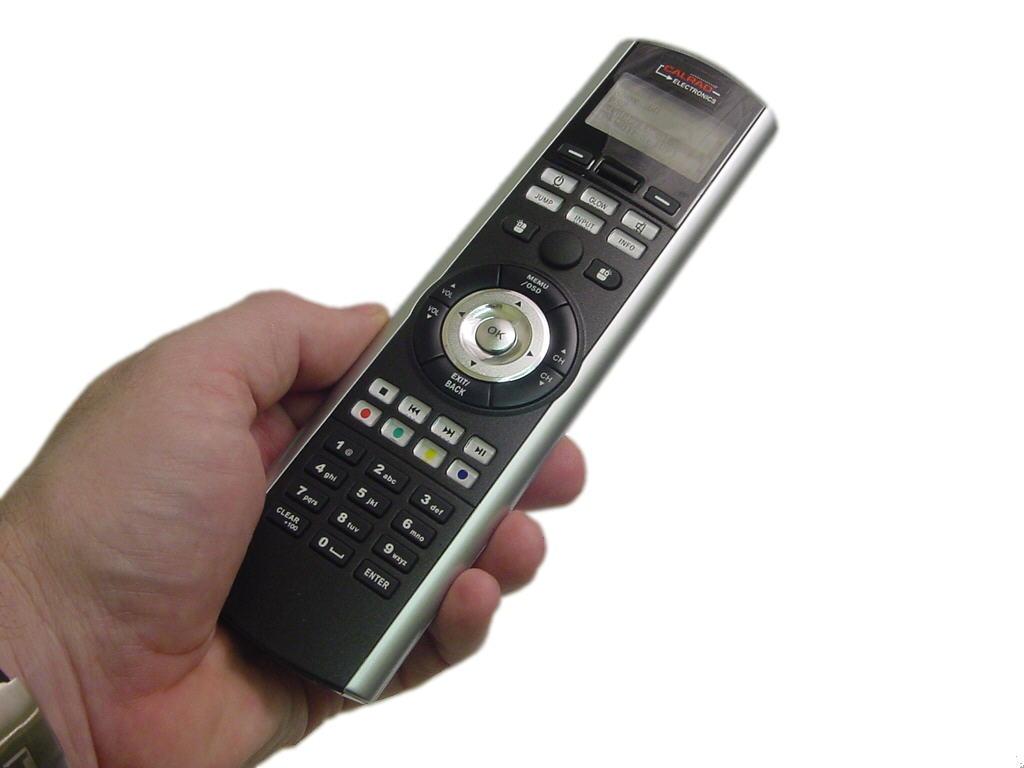

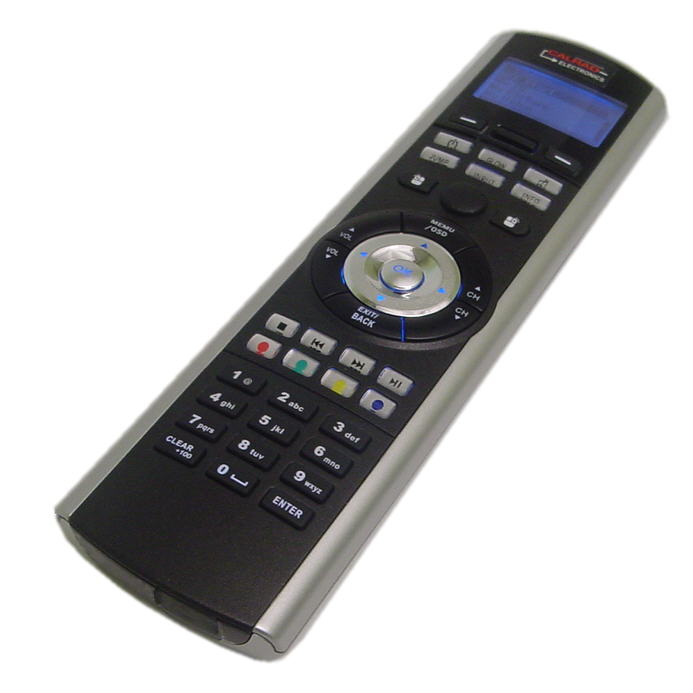

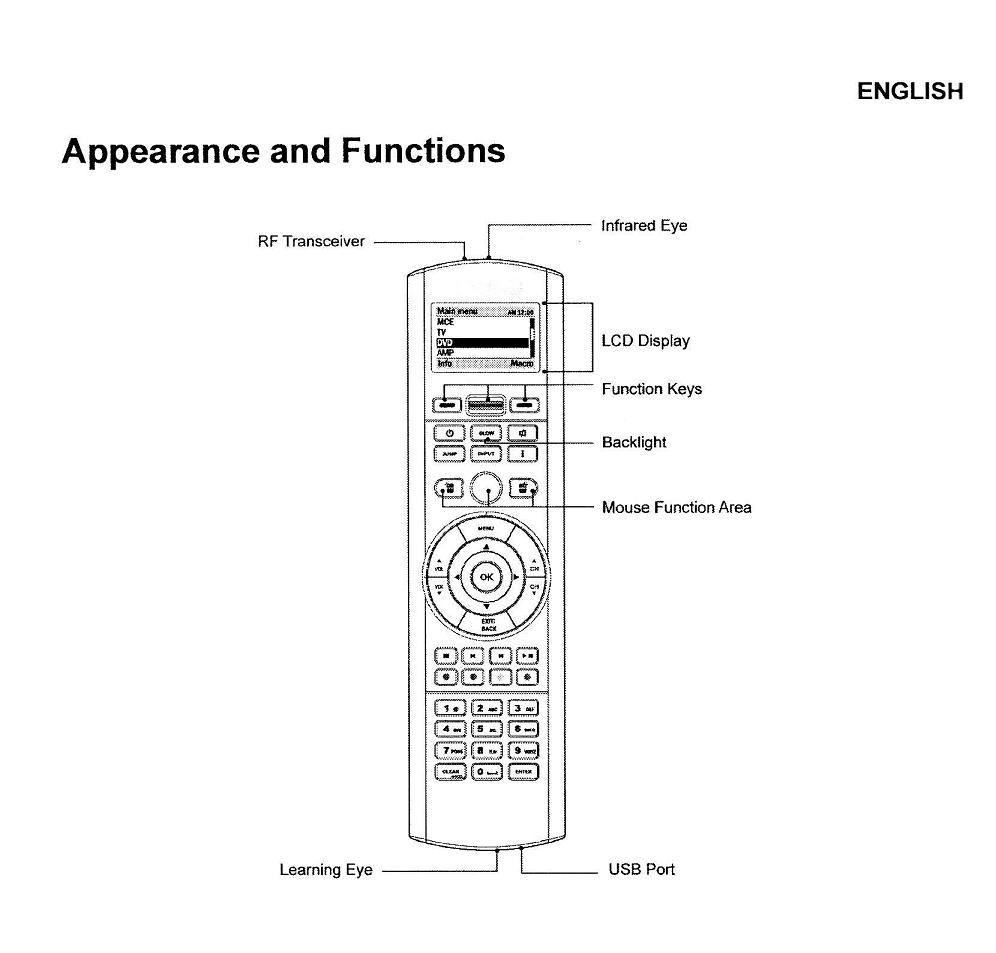

Remote Appearance and Functions:

Features Include:

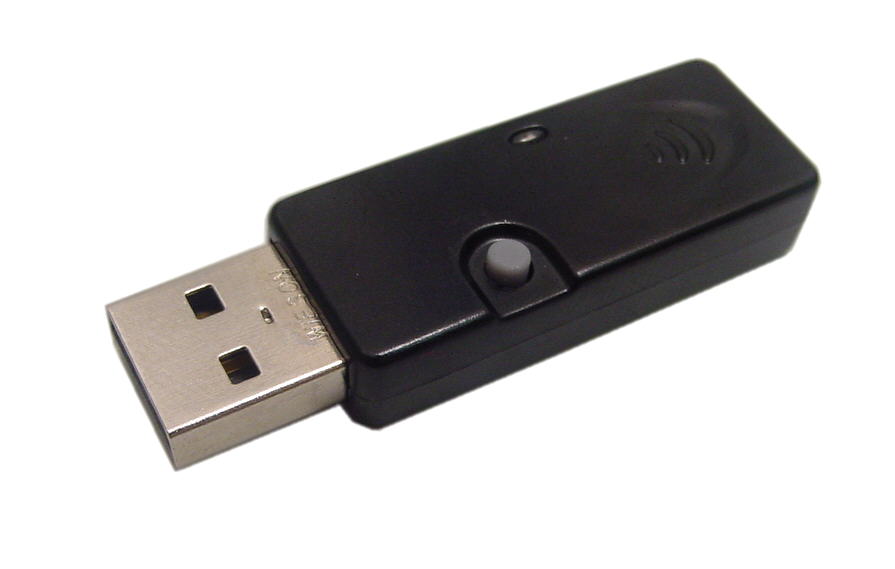

1. 16-in-one LCD remote control with Intelligent Integration, RF dongle, PC USB interface cable (3 ft. USB type ‘A’ to Mini USB) , Remote Comm software disc with drivers, Printed instruction manual

2. IR/RF control

3. Web based remote control library, database updated with new models automatically

4. Infrared code learning

5. LCD keys with editing function

6. Macro command key and macro timer setting

7. Mouse control with left and right mouse buttons

8. Built-in LCD automatic power-saving mode

9. Built-in calendar and real time clock

10. Built-in L.E.D backlight

11. Multilingual display options

12. Compatible with xLobby and MCE systems by various manufactures

13. Advanced feature setup functions using the Remote Comm software via USB PC link

14. Online software upgrades and updates the remote automatically when necessary

Functions:

1. 16 – 1 Remote, it controls TV, Satellite TV, DVD, BD, Audio and compactable with MCE system.

2. IR / RF Operation – Compatible with MCE / Windows VISTA system via RF and IR signal controls A/V devices.

3. Customized programming and text editing is possible via USB Remote Comm software.

4. Remote Comm Software and Remote control firmware can be upgraded through our on-line database.

5. IR device’s pre-code can be downloaded from our database server via the Internet.

6. All in one function integrates all your home devices and computer into one remote control.

7. Macro features can be stored up to 60 commands with a touch of button!

Battery: Four 1.5V AAA Alkaline Batteries

Weight (without batteries): 4.8 oz (135 g)

Keys: 64 Keys (36 Hard keys, 28 Soft keys)

LCD Display: 128 x 80 Pixels, 4 gray scale

Integrating Capability: Control up to 16 devices

Learning Frequency: 20KHz – 455KHz & Pulse up to 380 bits  long

IR Operating Distance: 8-10 meters

RF Transceiver: 2.4GHz transceiver GFSK

RF Operating Distance: 30 meters (open space)

Memory: 2MB Flash memory

PC Interface: USB 1.1

Backlight: Blue LED

Power Consumption
Operation Current: 150 mA (max)
LCD On Current: 1 mA
LCD Off Current: 60 µA

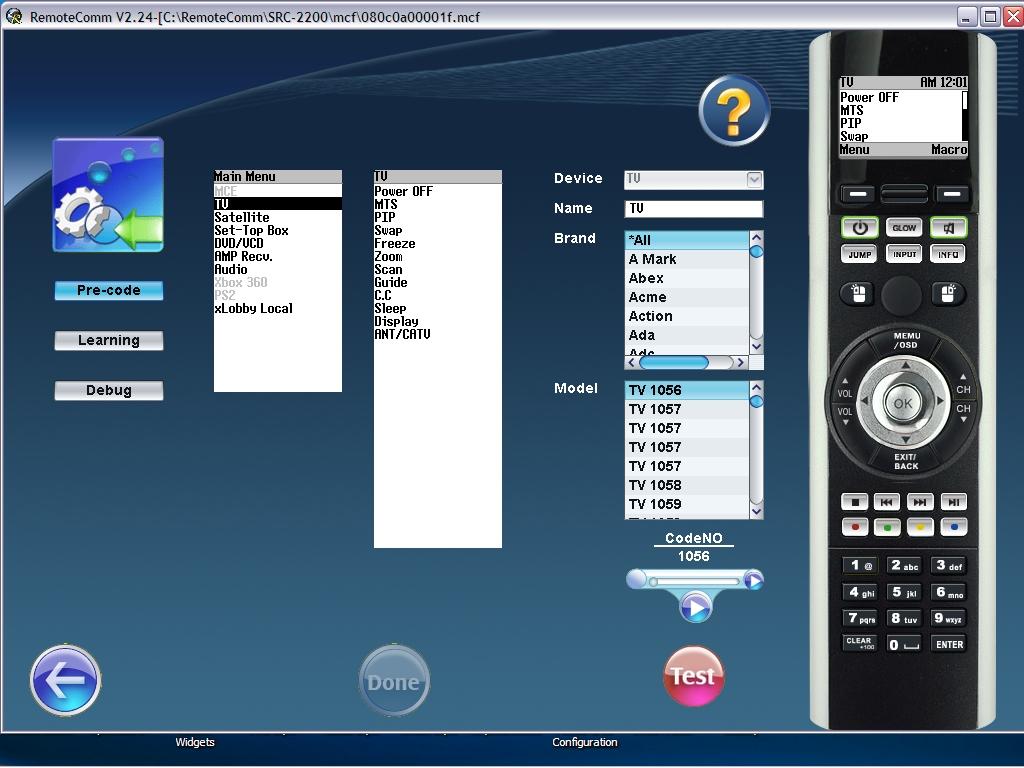

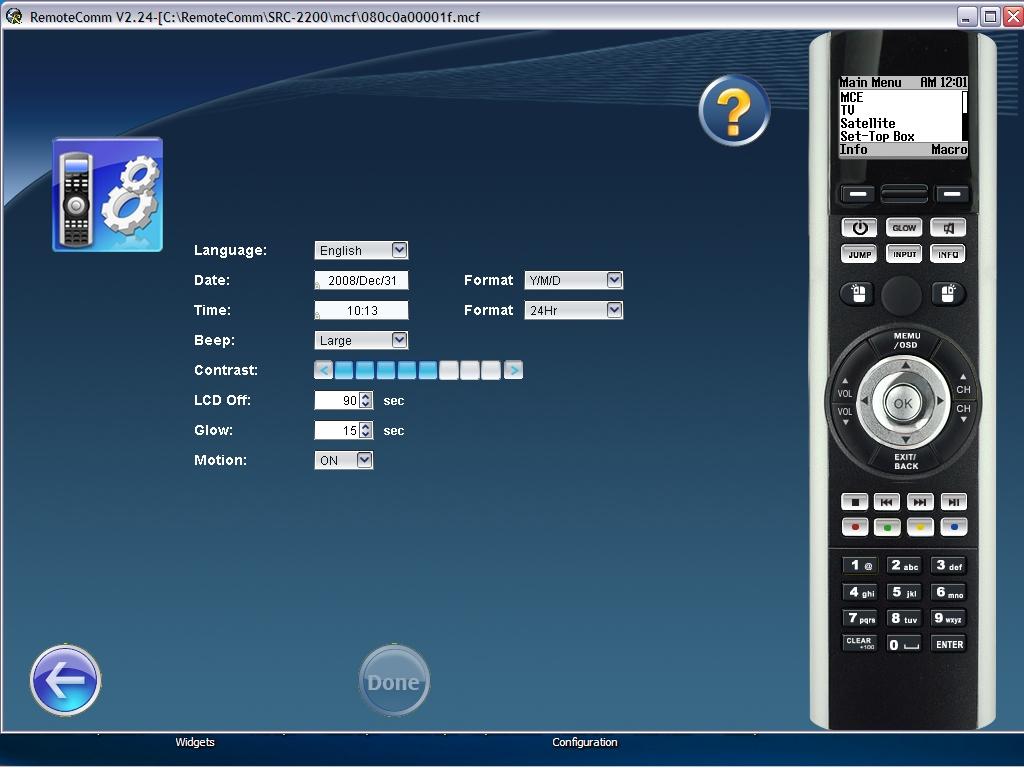

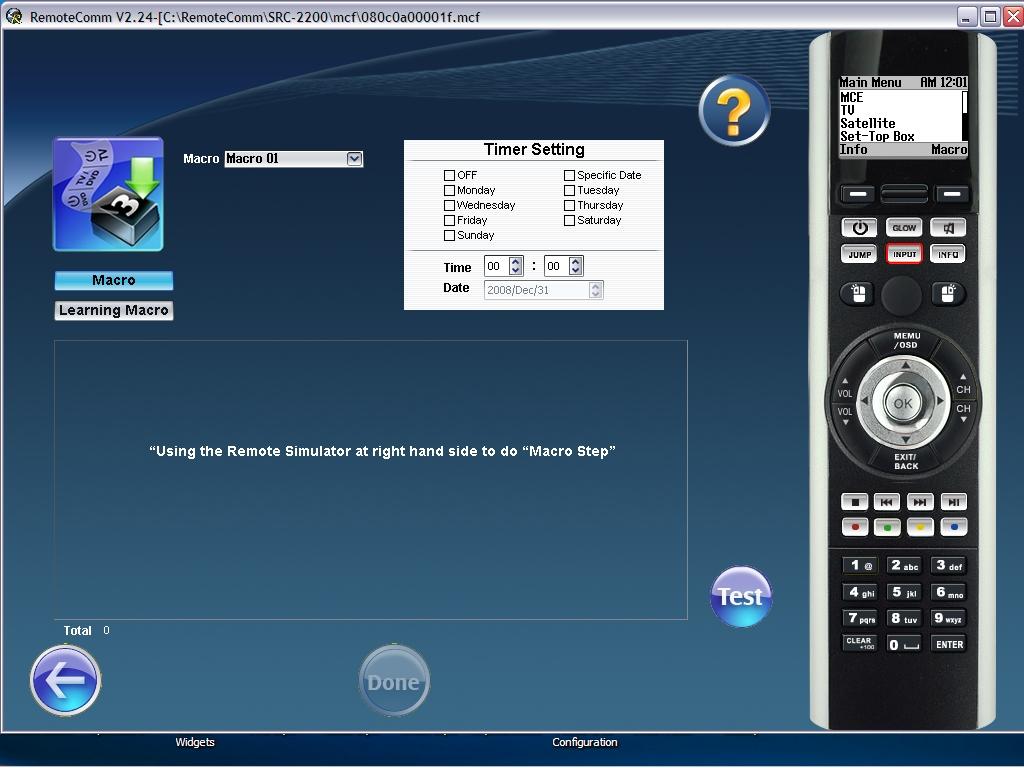

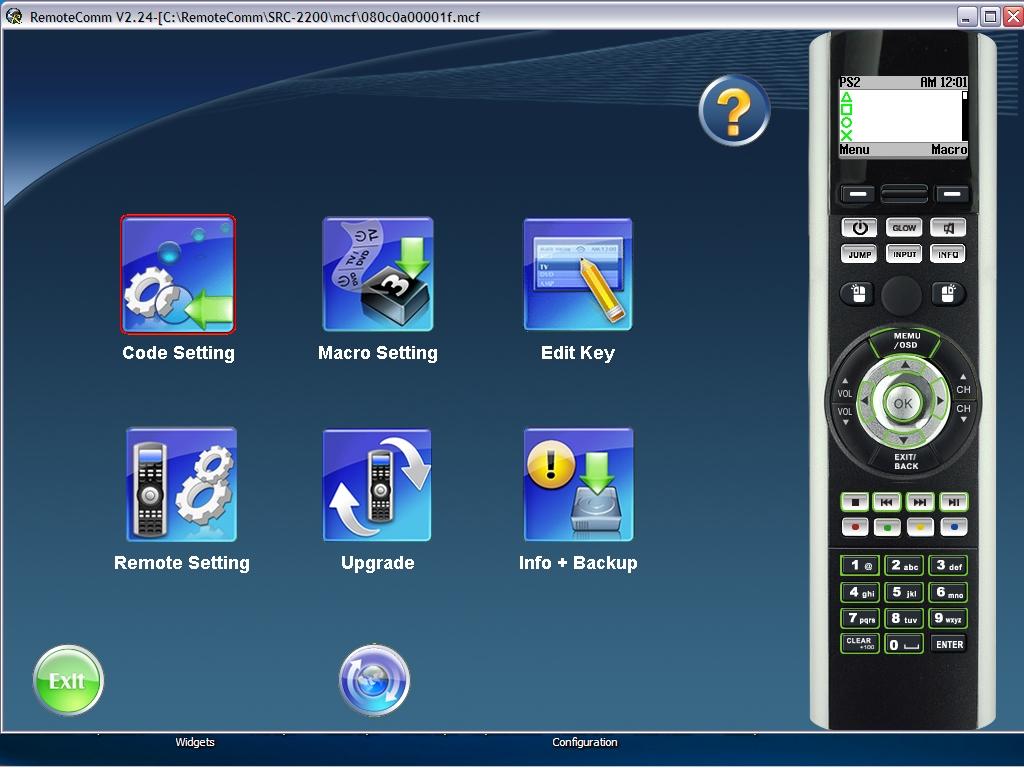

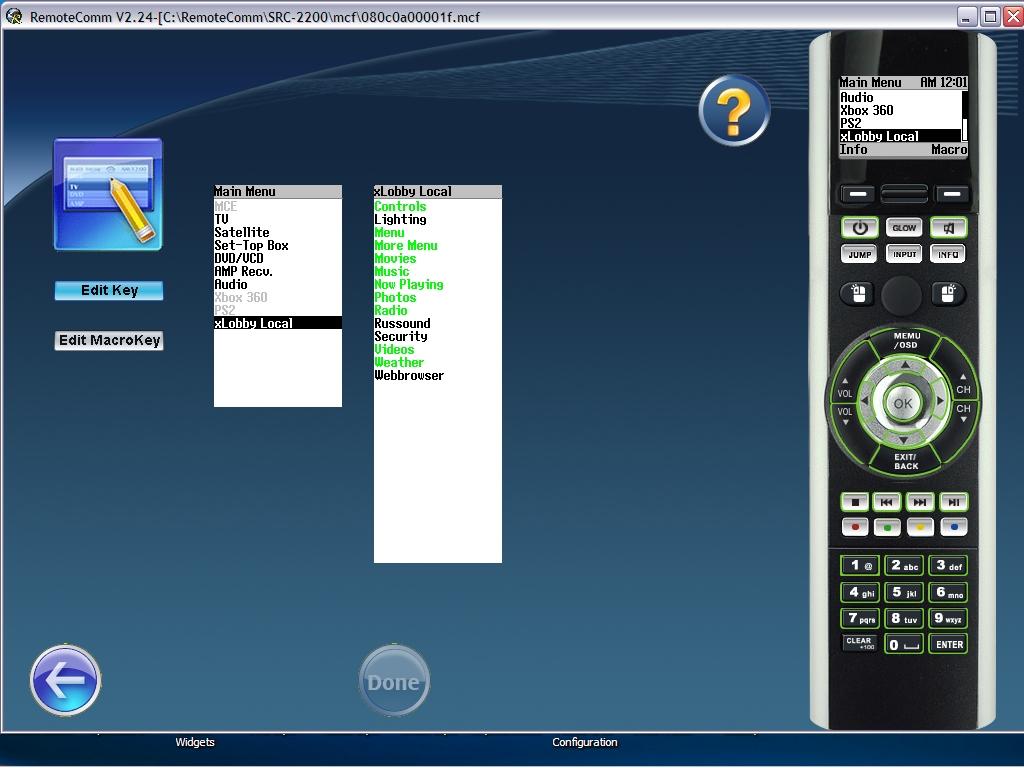

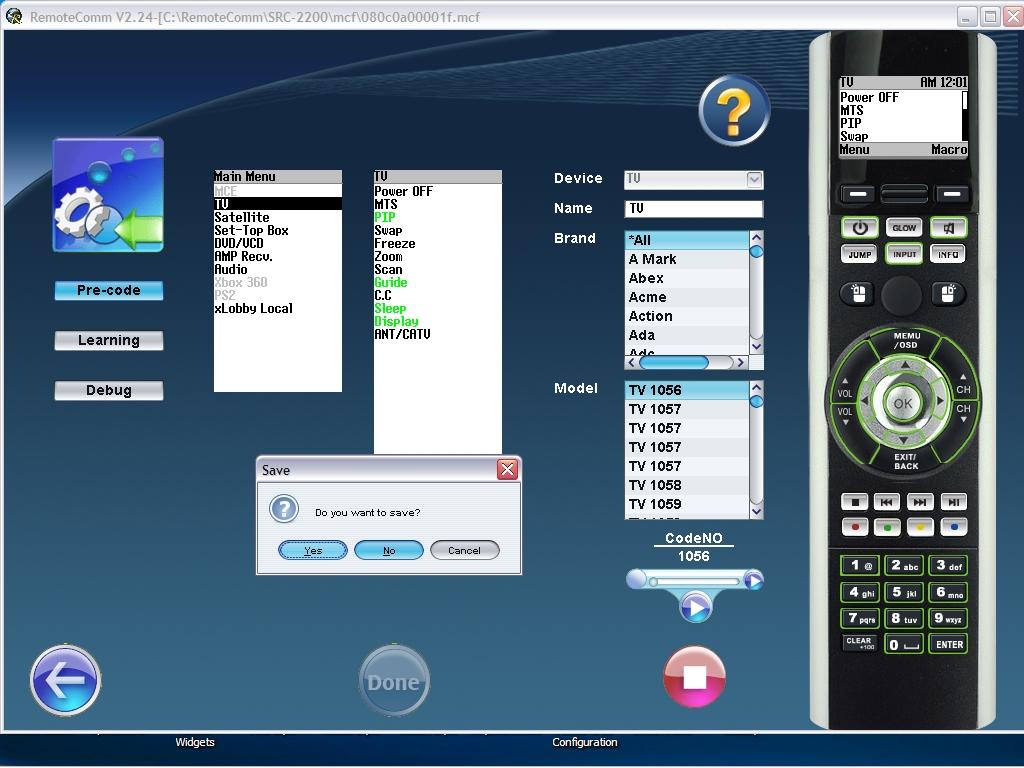

Software Screen Shots:

Wes Black

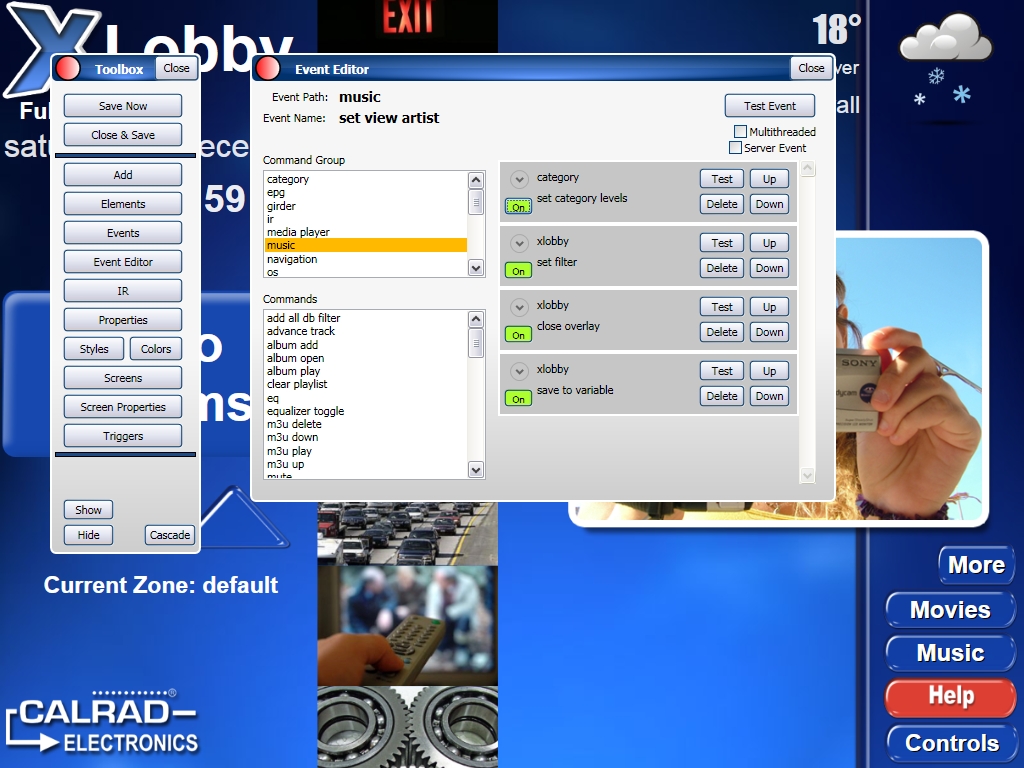

New Event Editor Feature

We have added a new feature to the event editor that allows users to enable or disable an event in a macro list of events. This will allow you to test individual events without having to manually add and remove them. Expect to see this feature in the next xLobby V3 release.



Wes Black

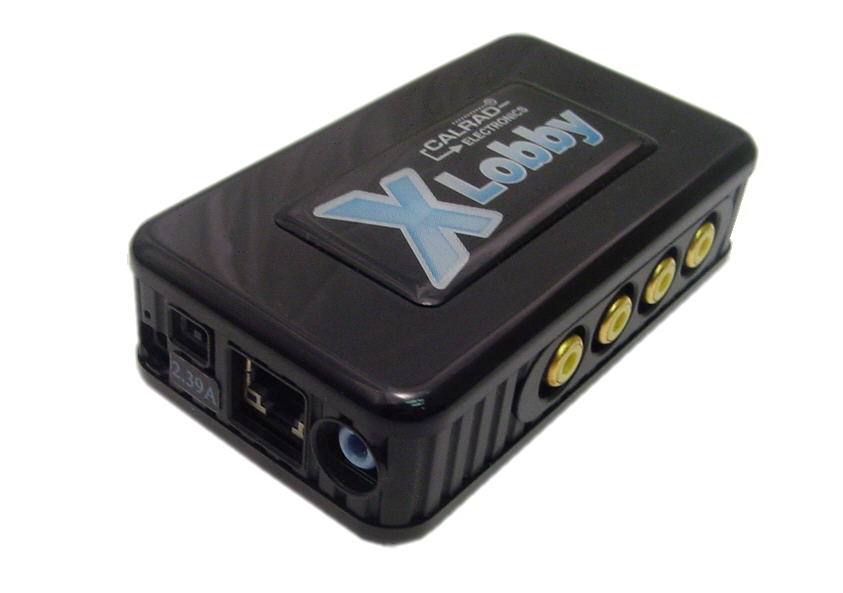

4 Channel Video Encoder

Early 2009 xLobby will lauch some new products for sale on the xLobby store website, one of them will be a embedded web based video server, no PC required. One xLobby IP encoder can transfer 4 video sources and 1 audio source – like from a video Camera, DVD player, STB Box, TV Game / Box ,Camcorder & VCR.

Features :
Embedded Web server – No need PC for Camera.
Multiple AV Input 4 video & 1 Audio In

Support Round robin – See 4 video sources on screen. output.
Motion Detection settings for CCTV use with three sensitivity levels.
E-mail the detected images to preset e-Mail address.
Ftp the detected images to preset FTP server.
Resolution -true 640×480, 352×288, 320×240, 176×144
QUALITY :Low, High Medium, Clarity, Motion.

Color Setup: Brightness, Contrast, Hue, and Saturation
Video Screen : 1×1 , 2×2 , 3×3 , 4×4
Supports Fix IP, PPPOE, DHCP , DDNS
Browse interface by xLobby, Internet Explorer, Firefox.
Reset all settings to factory default
